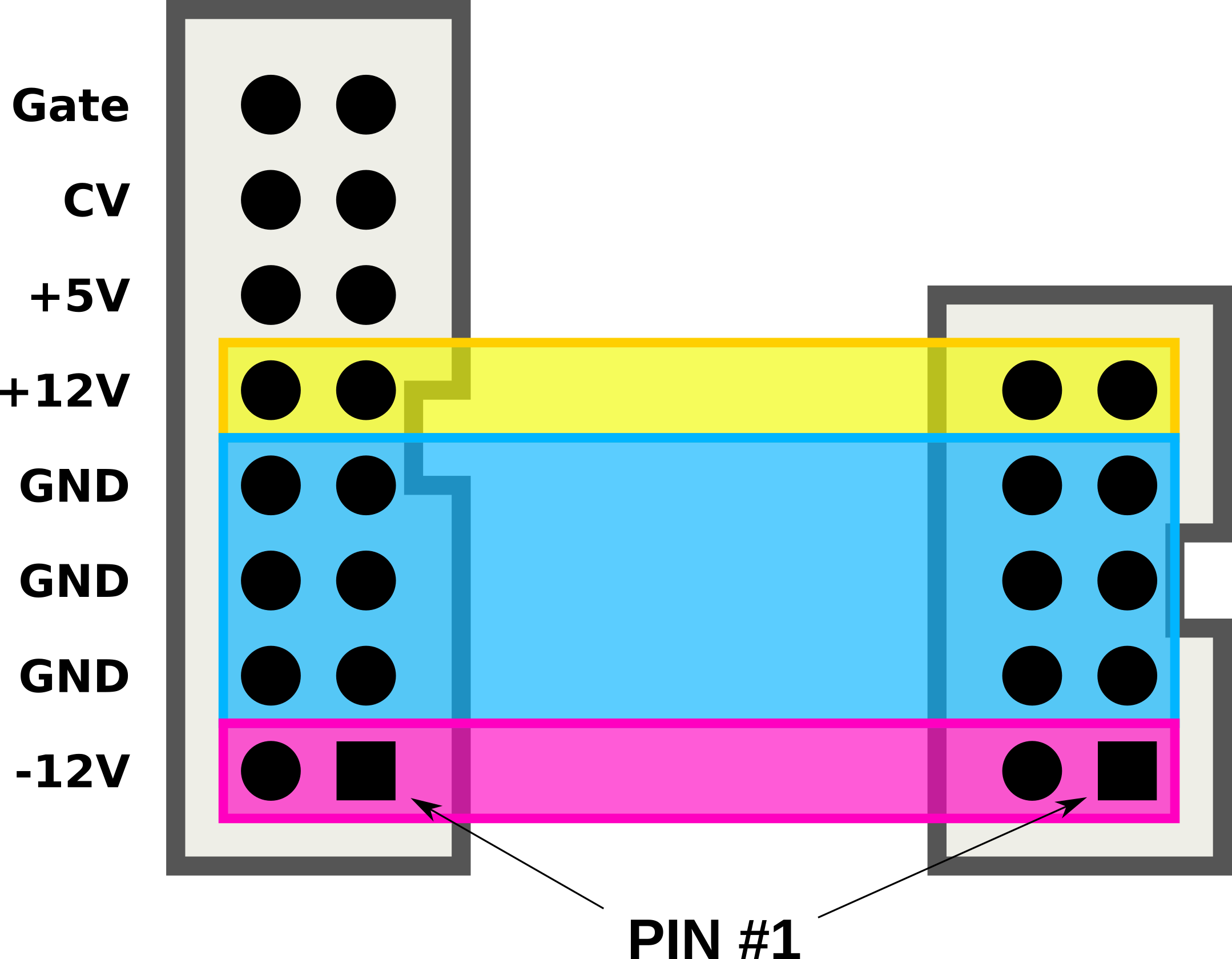

Eurorack 10-pin -12V / GND / +12V power cables with a 16-pin connector (2×8) on one side and a 10-pin connector (2×5) on the other. On the 16-pin connector, wiring runs from pin 1 to pin 10; pins 11 to 16 are not connected. On the 10-pin connector, all pins are wired through (1-to-1).
Various lengths are available, measured connector to connector. As these cables are hand-made, a few millimetres of variation are to be expected.
| Type | 16-to-10 pins |

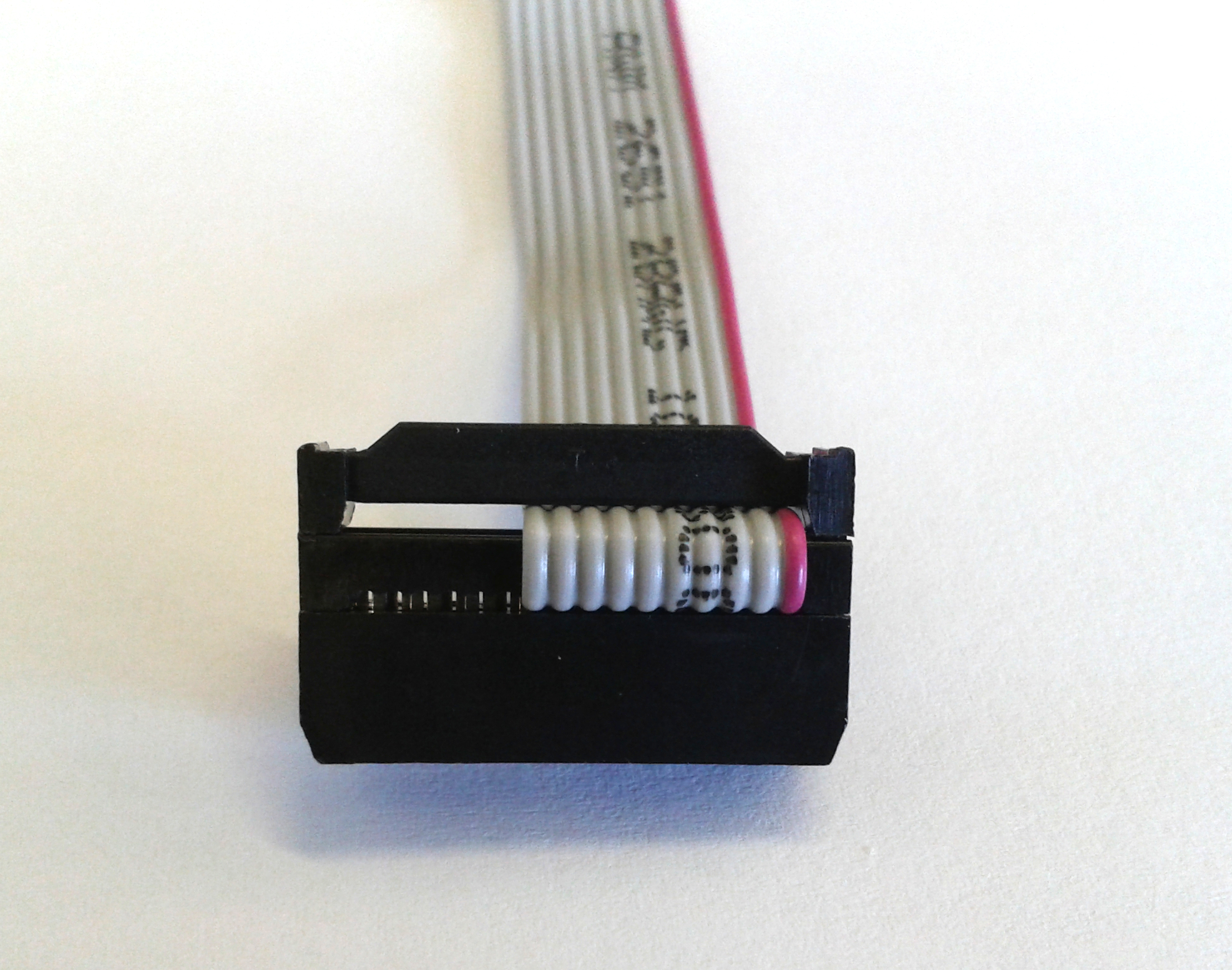

| Connectors | 2.54 mm pitch IDC (Insulation Displacement Connectors) with strain relief |
| Lengths available | 15 cm, 20 cm, 25 cm, 30 cm, and 35 cm |
Prices for 1 cable.
