UC Clock Divider

Description

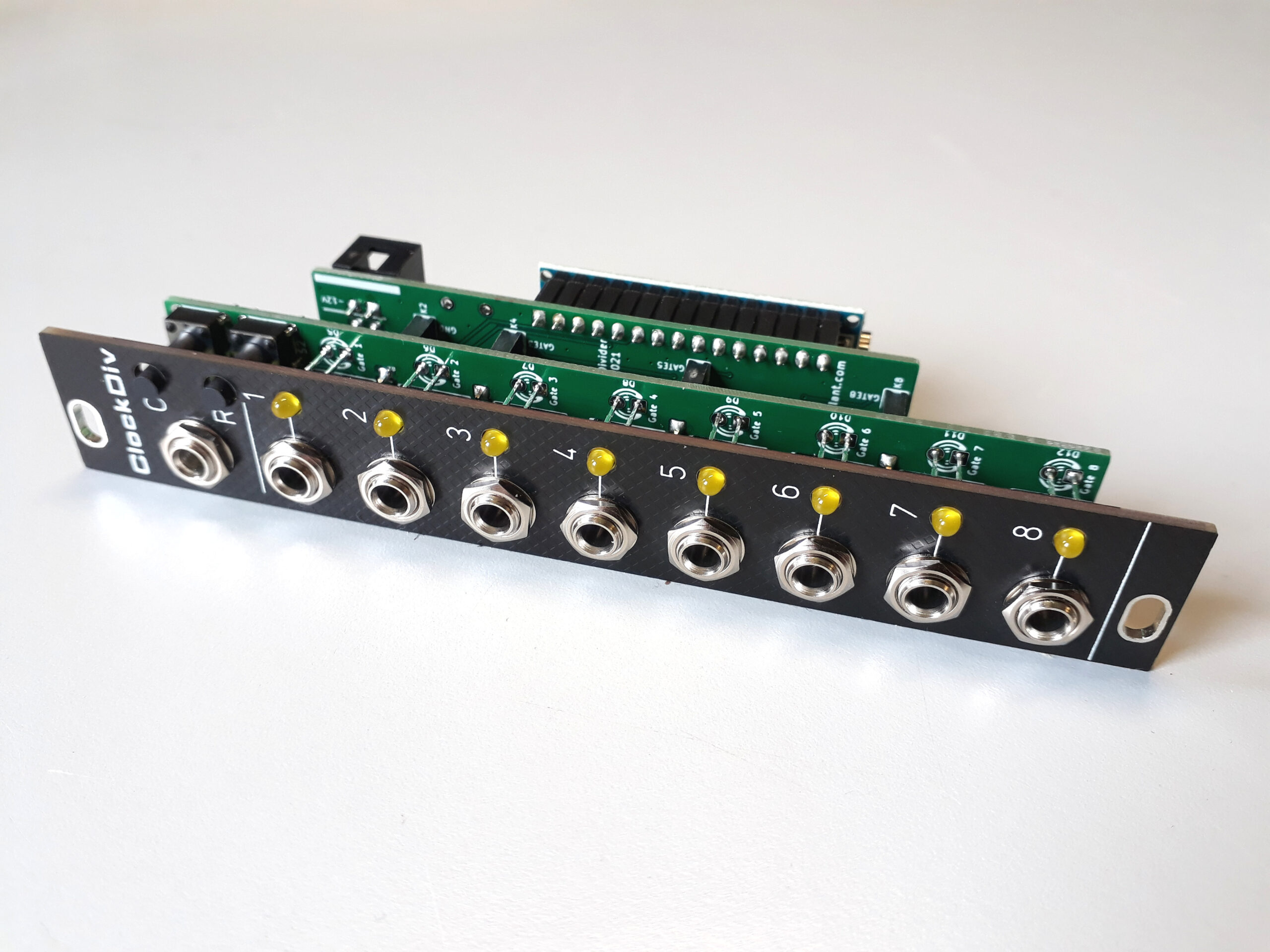

The UC (µC) Clock Divider is a clock/beat/step counter/divider, based on Arduino, with 8 outputs, configurable in code. With a clock divider you can slow down a tempo, create rhythmic patterns or, with a audio signal at the input, get sub-octaves. It can also be used, with the right code, as a DIN Sync decoder.

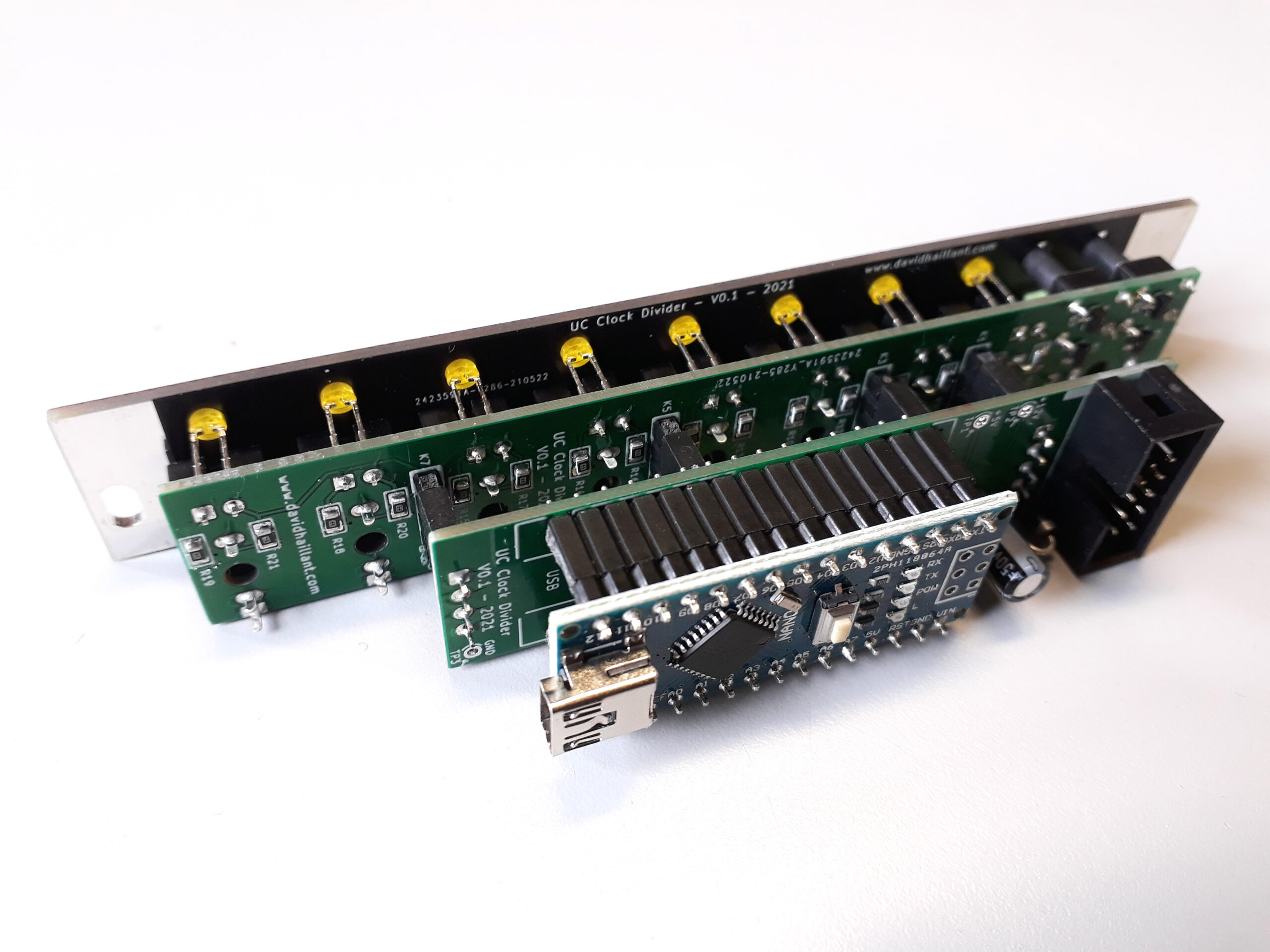

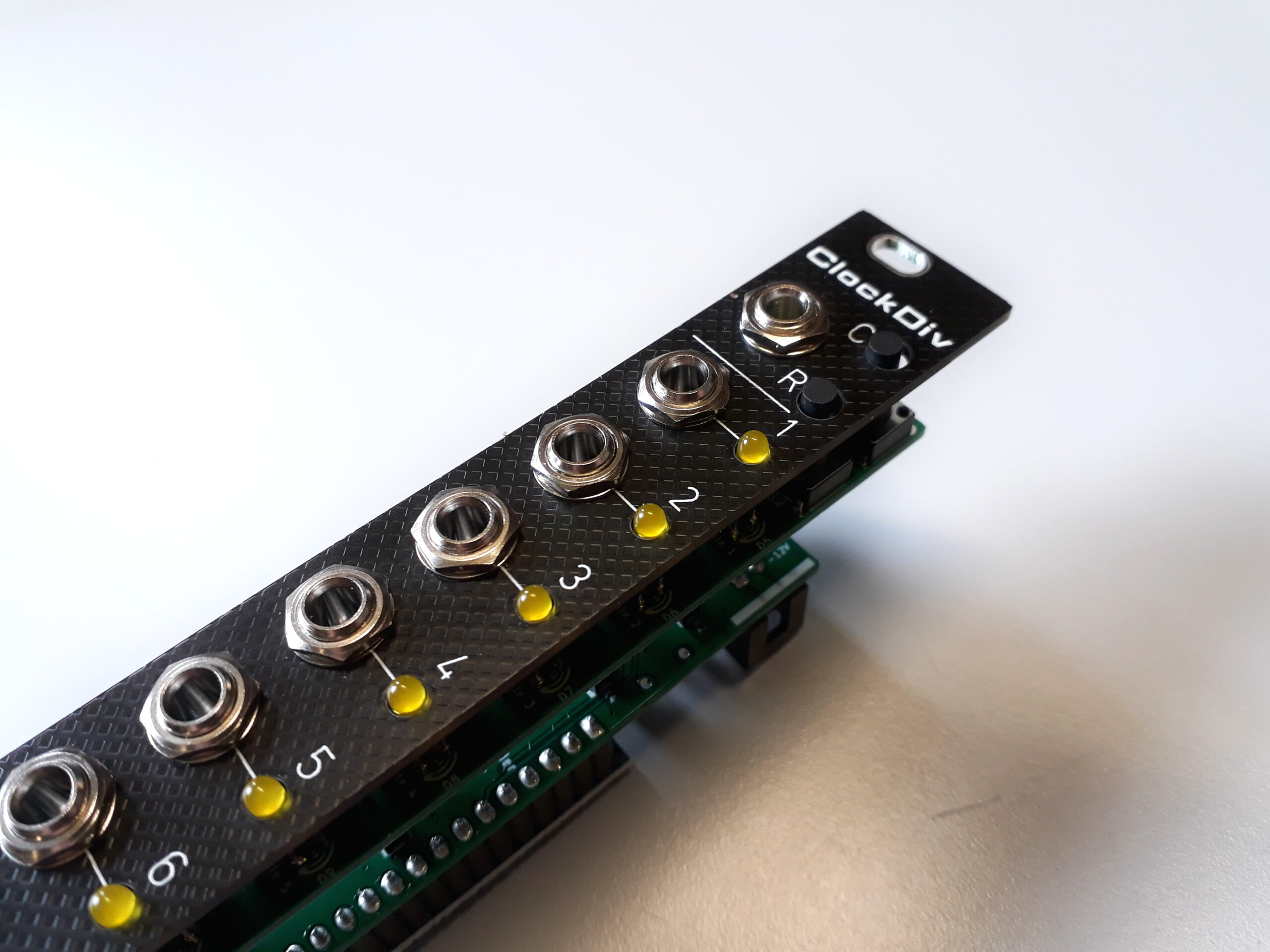

The circuit is very simple and depends almost exclusively on the Arduino Nano module. The input jack is stereo (TRS). Tip (T) is connected to Clock signal and Ring (R) is connected to Reset. A +5V voltage triggers either Clock or Reset.

The outputs are +5V when ON and 0V when OFF.

Schematics and documentation can be found at https://www.davidhaillant.com/uc-clock-divider/
