Moog-type High-pass Ladder Filter
Moog-type High-pass Ladder Filter - Image 2
Moog-type High-pass Ladder Filter - Image 3

Moog-type High-pass Ladder Filter

Price range: 8,00 € through 39,00 €

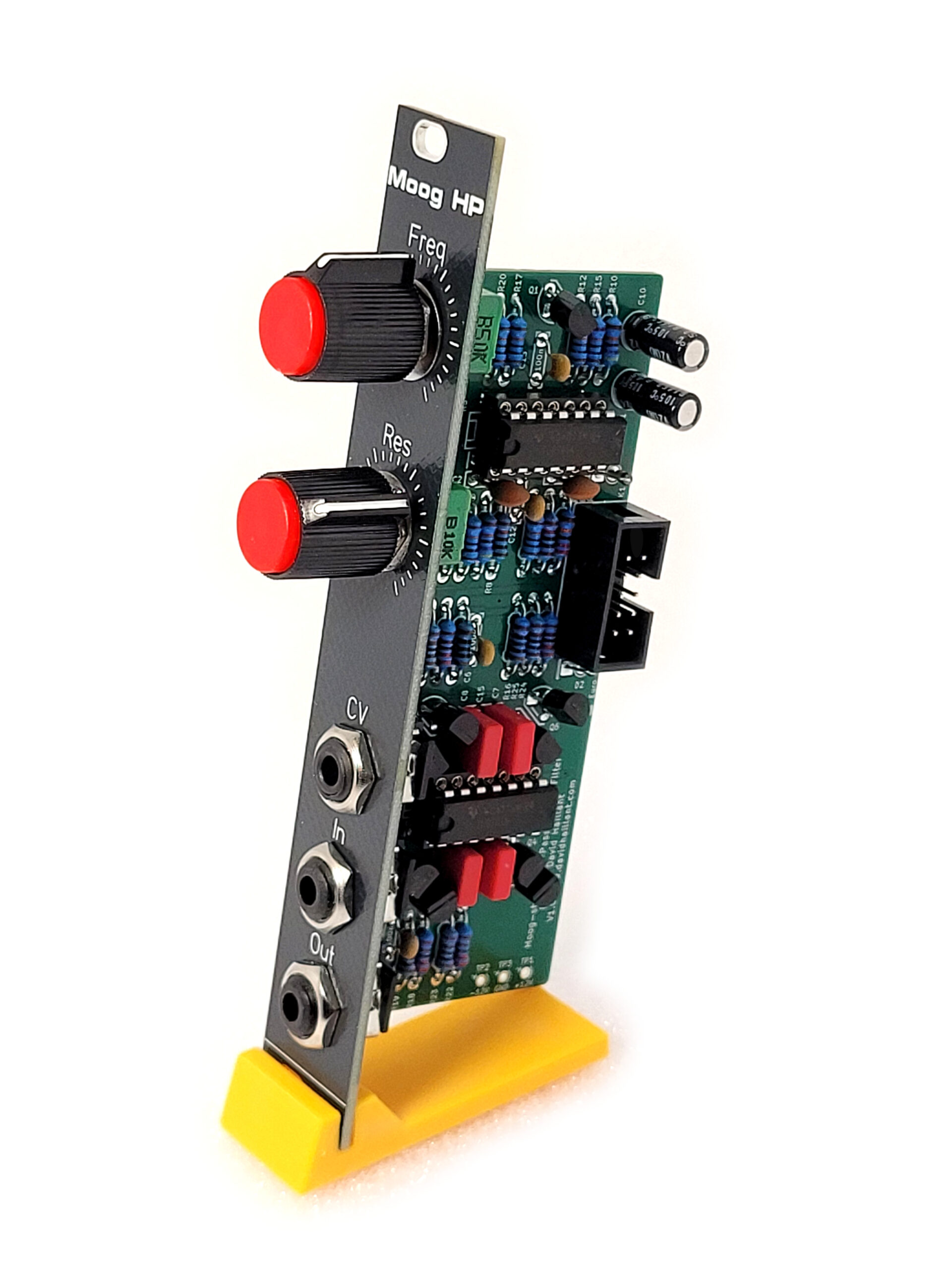

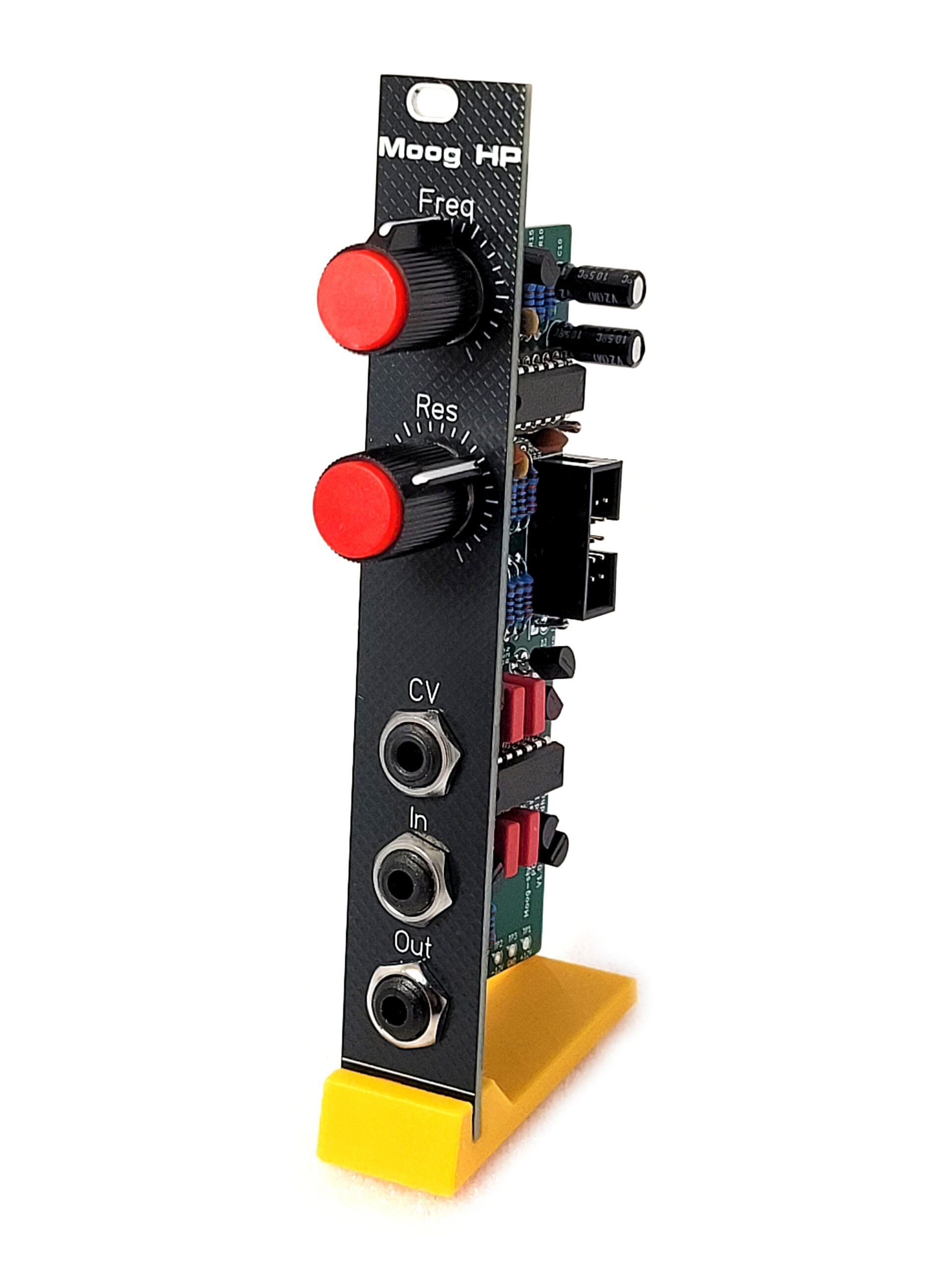

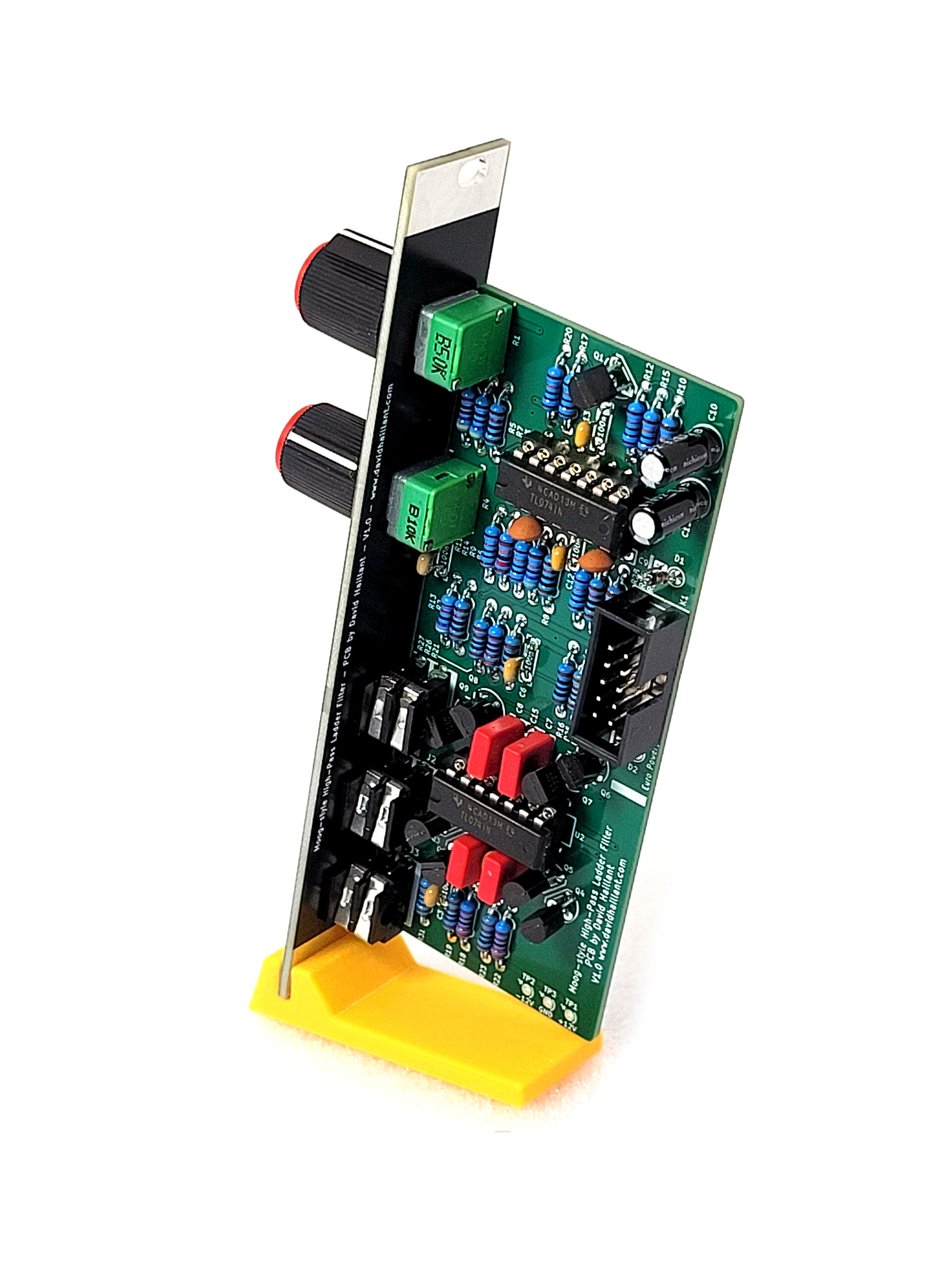

Voltage Controlled High-Pass Transistor Ladder Filter for Eurorack, 4HP. Based on the EFM (Electronics For Music) circuit, with modifications by Kristian Blasol. Available as PCB only, kit, or fully assembled module.

Join Waitlist We will inform you when the product arrives in stock. Please leave your valid email address below.
SKU: N/A Category: Tags: , , , Brand:

Description

The High-Pass Transistor Ladder VCF is a Moog-inspired Voltage Controlled High-Pass Filter for Eurorack systems. It is based on the original High Pass Filter circuit by EFM (Electronics For Music), and further refined using the comments and suggestions from Kristian Blasol in his DIY Modular in a Week series.

Specifications

Format Eurorack
Width 4HP
Filter type Voltage Controlled High-Pass Transistor Ladder (VCF)
CV control Cutoff frequency
Jack connectors Cliff CL1384 (3.5mm)
Power Eurorack standard +/-12V
Version 1.0

References

The circuit is based on the High Pass Filter by EFM (Electronics For Music), with modifications inspired by Kristian Blasol’s work on the Moog Highpass Transistor Ladder Filter.

Schematics and documentation.

Additional information

Configuration

PCB, PCB + Front panel, Full kit, Assembled and tested
