Name: 5-holes 4HP prototyping panel
Brand: David Haillant
SKU: 591
Availability: InStock

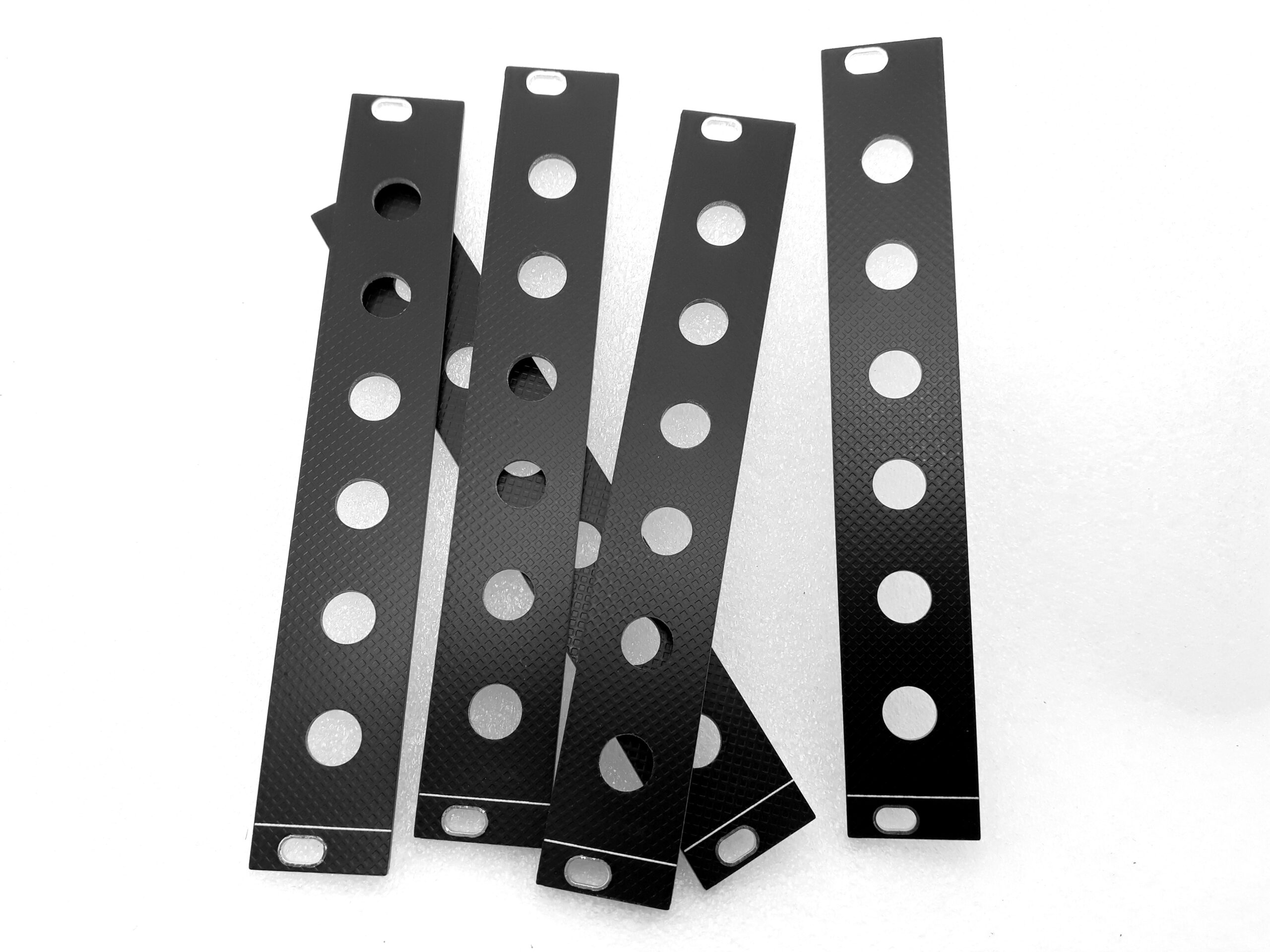

5-holes 4HP prototyping panel

3,00 €

4HP Eurorack front panel with 5 pre-drilled 8mm holes, compatible with the Eurorack Stripboard/Protoboard PCB and Pot&Jack Chicklet. PCB material, black soldermask, 1.6mm thick.

2 in stock

Description

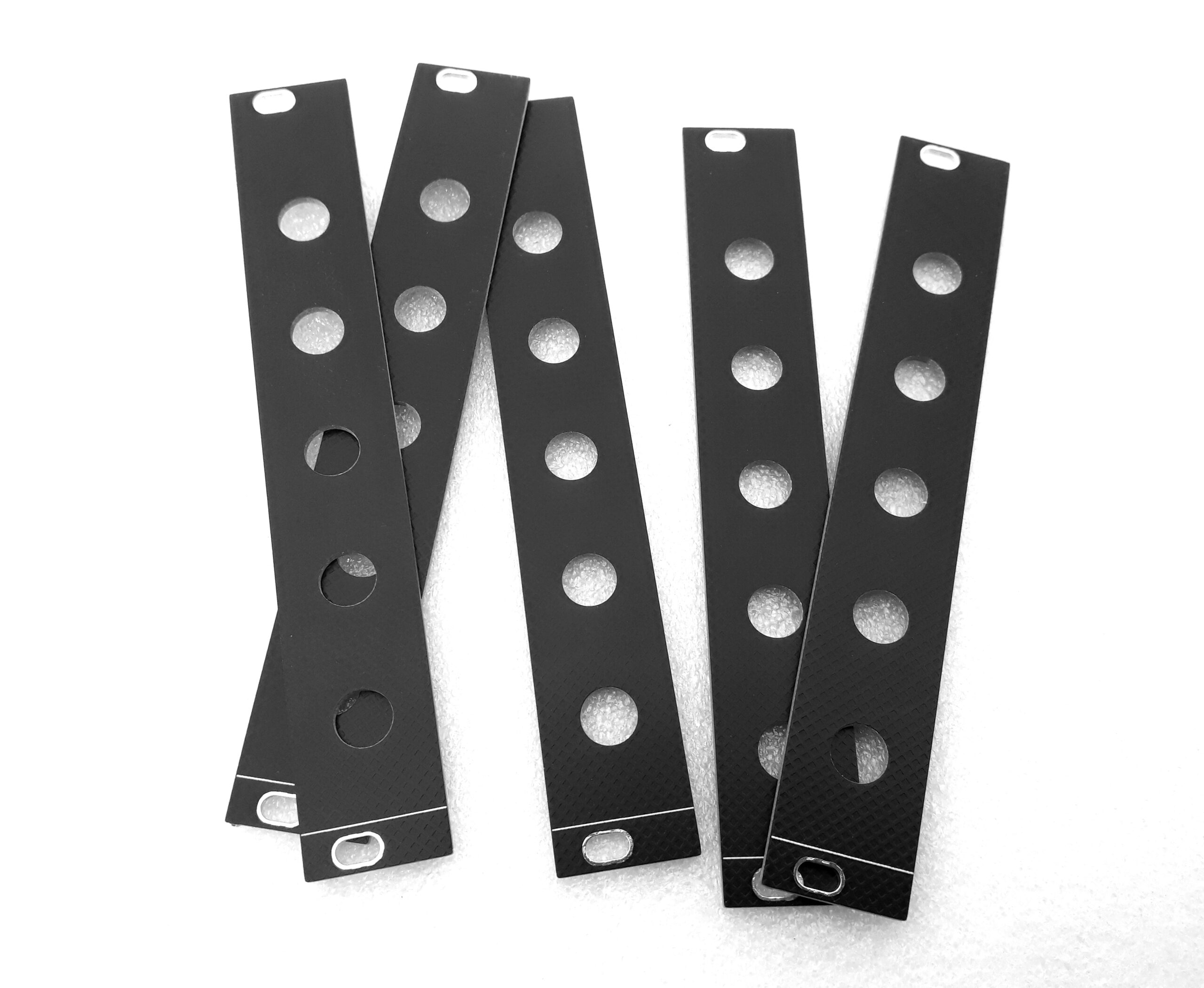

This is a front panel with 5 pre-drilled holes, compatible with the Eurorack Stripboard/Protoboard PCB and works perfectly with the Pot&Jack Chicklet.

The 5-holes panel can also be used with other home-made, fully DIY circuits.

The front panel is made of PCB material with black soldermask, and has a thickness of 1.6mm.
The width is 4HP.

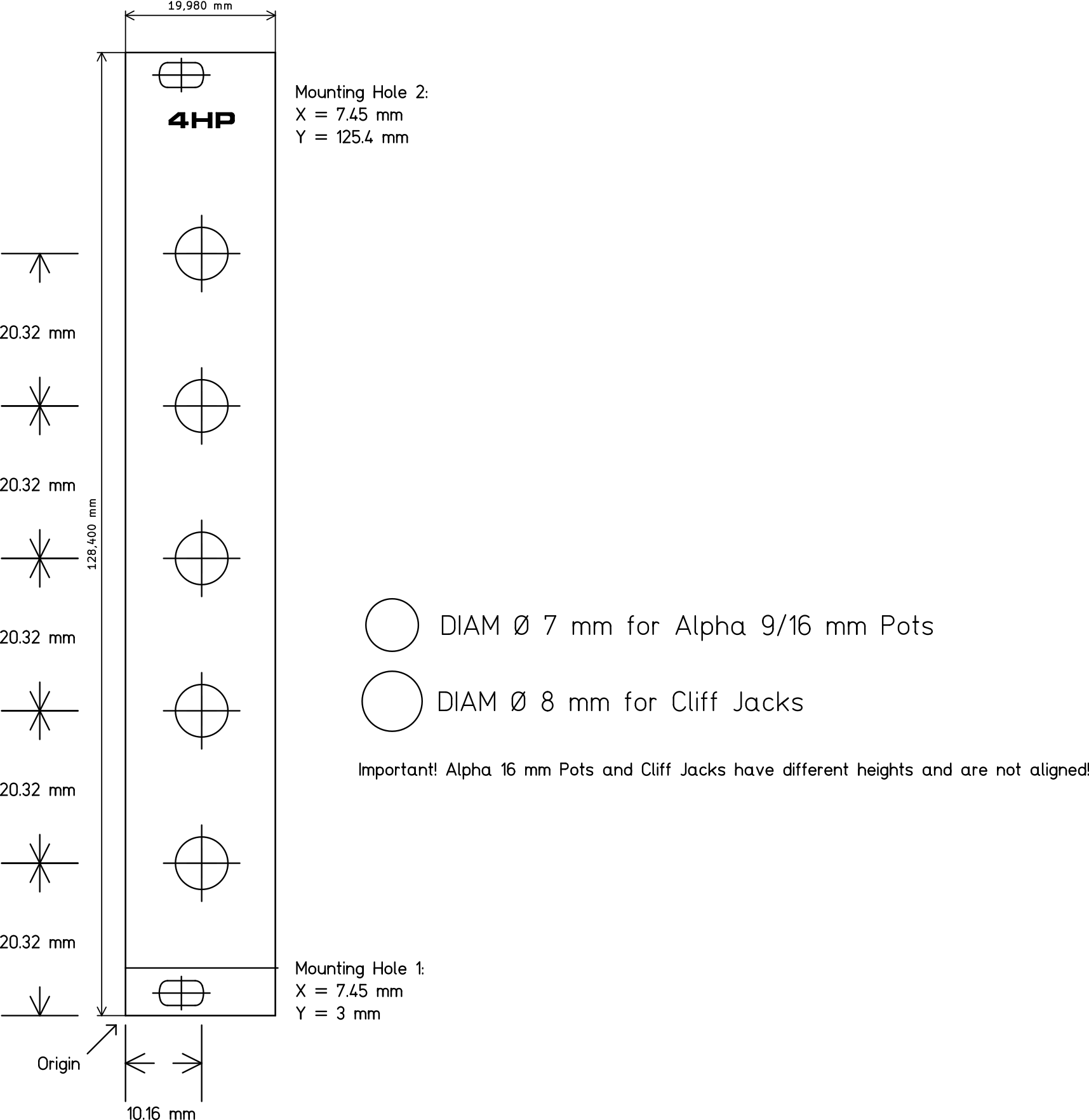

The 5 control holes are spaced 20.32mm from each other, and have an 8mm diameter. They fit perfectly for Alpha potentiometers or Cliff jack sockets.

Additional information

Weight	8,1 g
